Heavy-Duty Video Inspection System with Large 7 in. LCD Screen by General Tools

The DCS2000 consists of a rugged HD Video Inspection Camera Bore Scope with Extra Large 7 in. LCD Screen. This system is General Tools’ best super high-performance video bore scope and is ideal for professional close-up inspections of hard-to-see and hard-to-reach areas. A wide range of features produces a versatile, easy-to-use system with high-definition resolution for clear viewing.

• Super-clear viewing on 7 in. (178 mm) diagonal LCD with high-definition 800 x 480 pixel resolution
• 39 in. L, 5.5 mm (0.22 in.) diameter soft metal probe is ideal for getting into tight crevices and is equipped with a tiny 640 x 480 pixel (VGA) resolution camera
• Camera’s six LEDs (four facing forward and two at an angle) provide glare-free lighting in any environment
• Light boost, anti-reflection and 90° frame rotation buttons on probe handle maximize visibility of any inspection target
• Probe and stainless steel camera head are IP67 water-, oil- and dust-proof; console is IP57 water-, oil- and dust-proof as well as drop-proof from height of 1 m (39 in.)
• Records VGA resolution video clips (with voice annotation) and still images using familiar menu-driven user interface, saved video and photo files incorporate real-time brightness and zoom adjustments made prior to recording or on the fly to optimize target clarity and detail
• Easy-to-navigate album-style (3 x 3 grids) display of all stored media files
• Different areas of interest on saved photos can be selected for extreme close-up viewing
• Field of view can be enlarged up to 5x, mirrored horizontally or rotated 90°, 180° or 270°; features can be applied alone or together to make targets easier to inspect and serial numbers easier to read

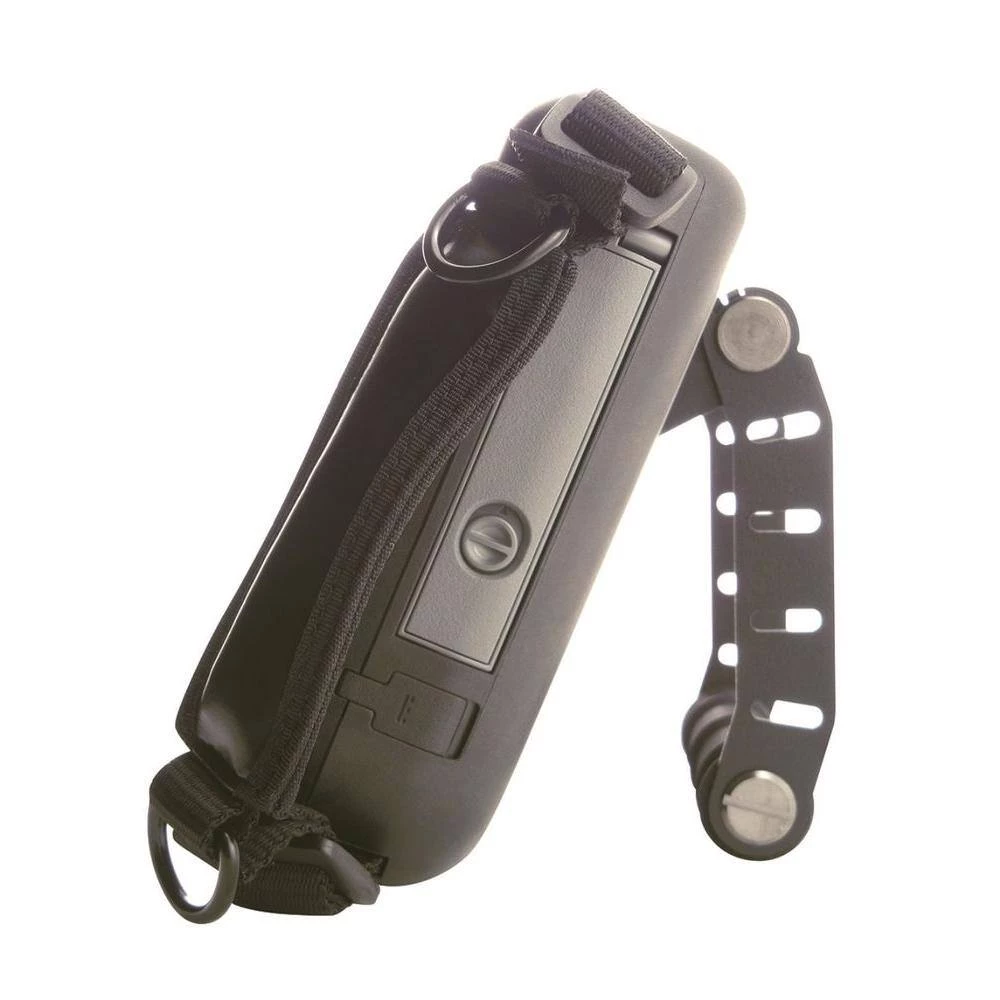

• Includes 4GB SD memory card, analog video out/headphone jack, USB cable for uploading media on SD card to PC without ejecting card, 110° mirrored probe viewing tip, custom airtight hard plastic carrying case, hand strap, tripod mount and rechargeable lithium-polymer battery
• Adjustable auto power off triggering time
• Analog video out formats: NTSC and PAL; video frame rate: 30 frames per second (FPS) compression format: compatible with MPEG4
• Probe handle controls: light boost, anti-reflection, 90° image rotation
• Camera resolution: 640 x 480 pixels (VGA); camera depth of field: 0.25 to 12 in. (6.4 to 300 mm); camera field of view: 60°

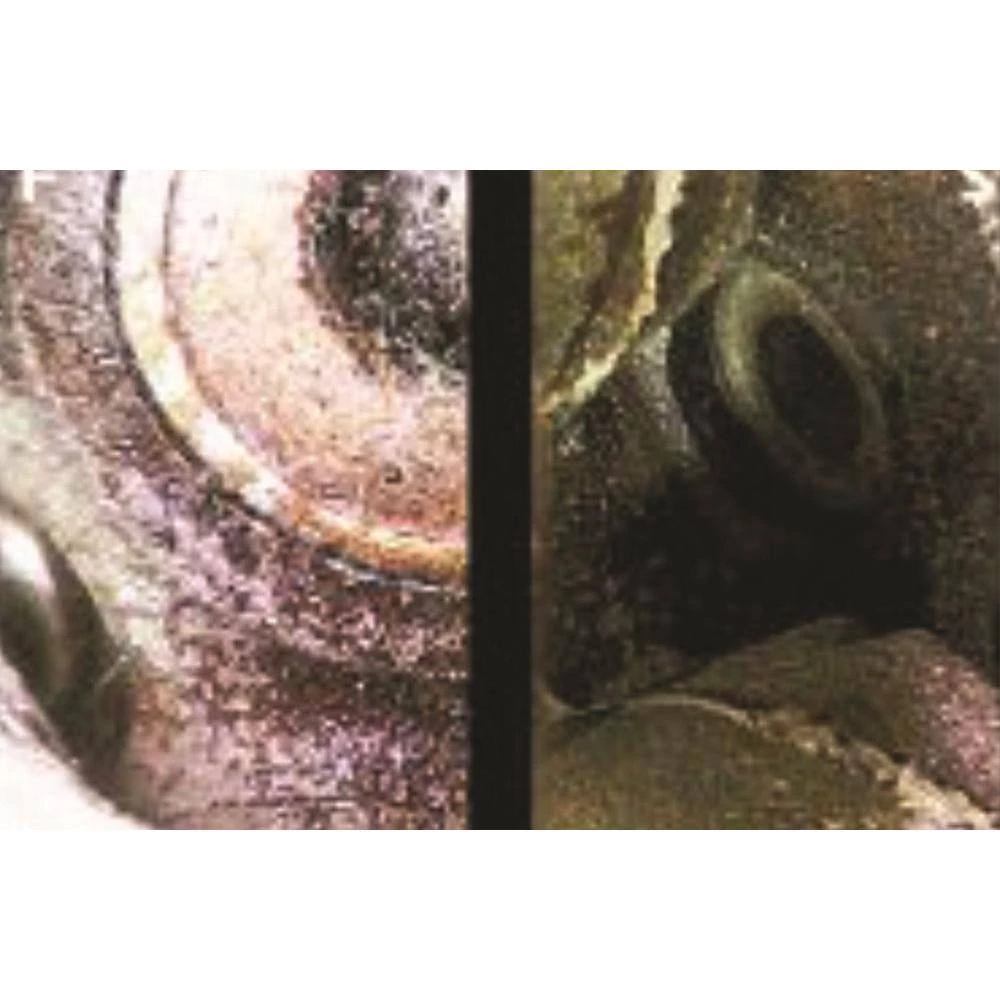

• LCD can show side-by-side front and side views from optional split mirror probe tip attachment (requires purchase of optional VGA resolution articulating probe and split mirror)
