4-Button Magnetic Digital Angle Detector by General Tools

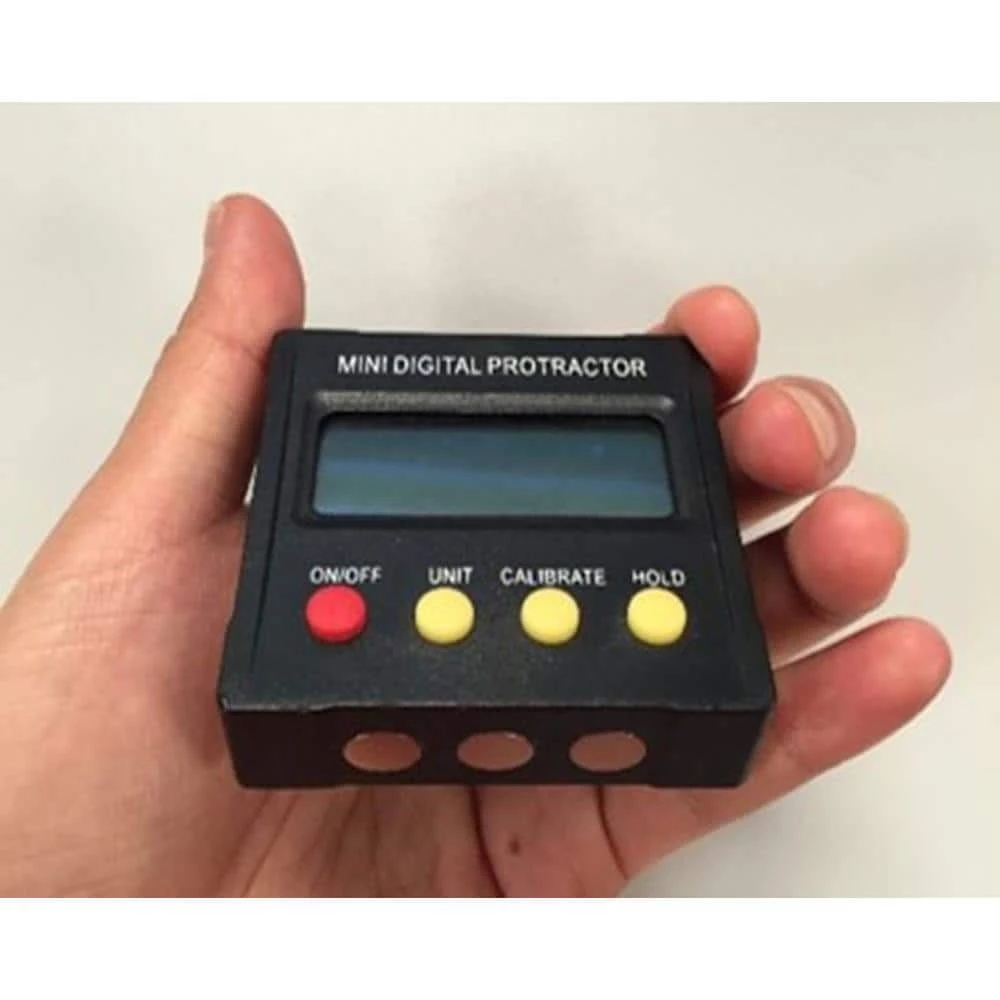

General Tools has grown to become the recognized industry leader for specialty hand tools and instruments. The 824 Magnetic Digital Angle Detectors 4 Button is used for measuring any angle such as to set blade angles on lathes, miter, band, table, chop and circular saws. It’s compact and lightweight and is ideal for a multiple of construction applications. A magnetic base allows for the unit to be attached to metal surfaces such as to a saw blade to ensure the proper bevel angle.

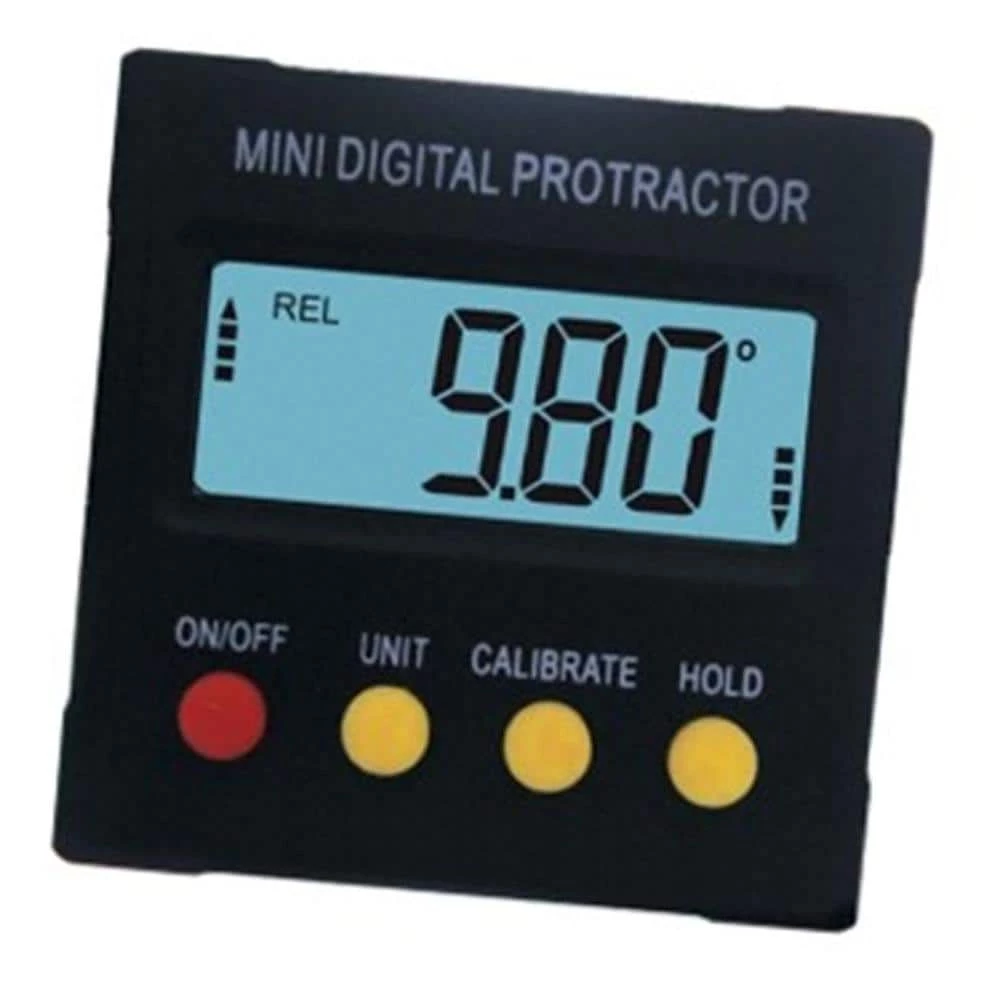

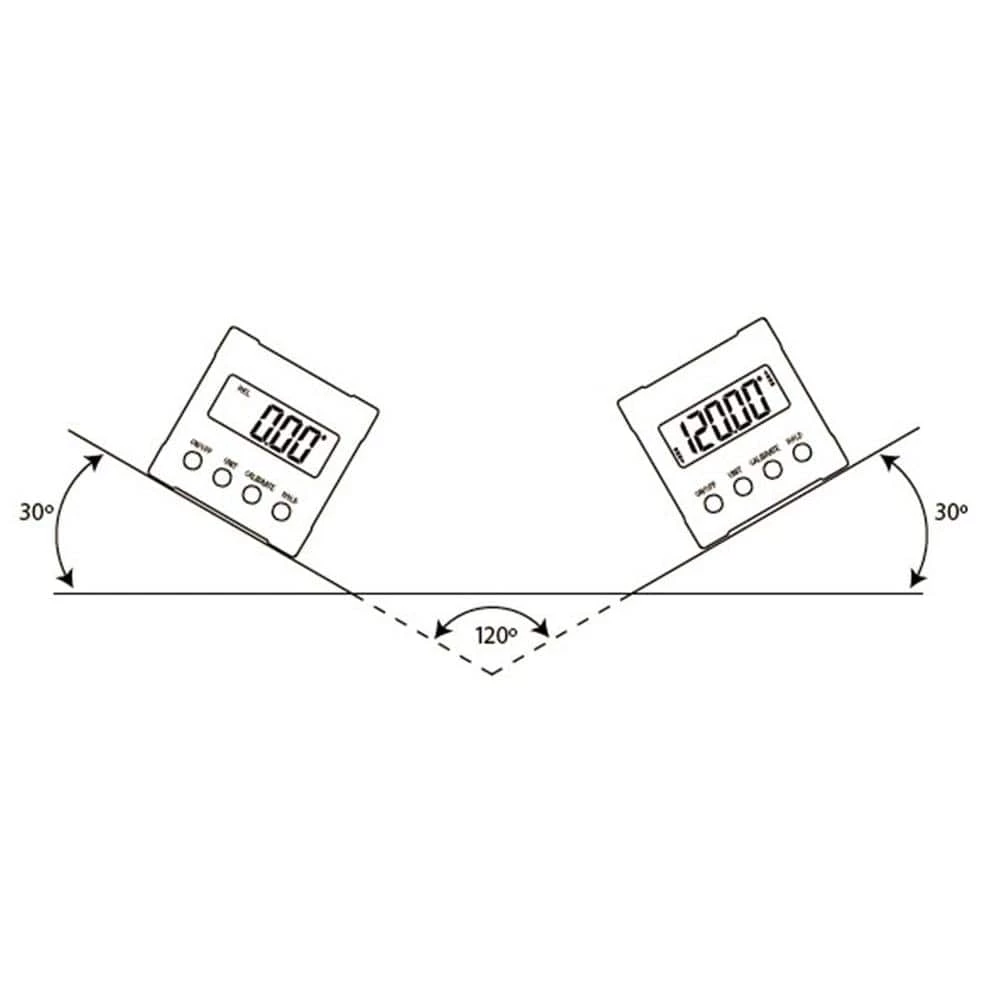

• 4 buttons functions allow for multiple applications: 1) unit: converts into percent of slope or degree of slope mode 2) hold: locks the current measured value for easy transfer of angles 3) calibrate: shows absolute or relative angle measurements 4) power button

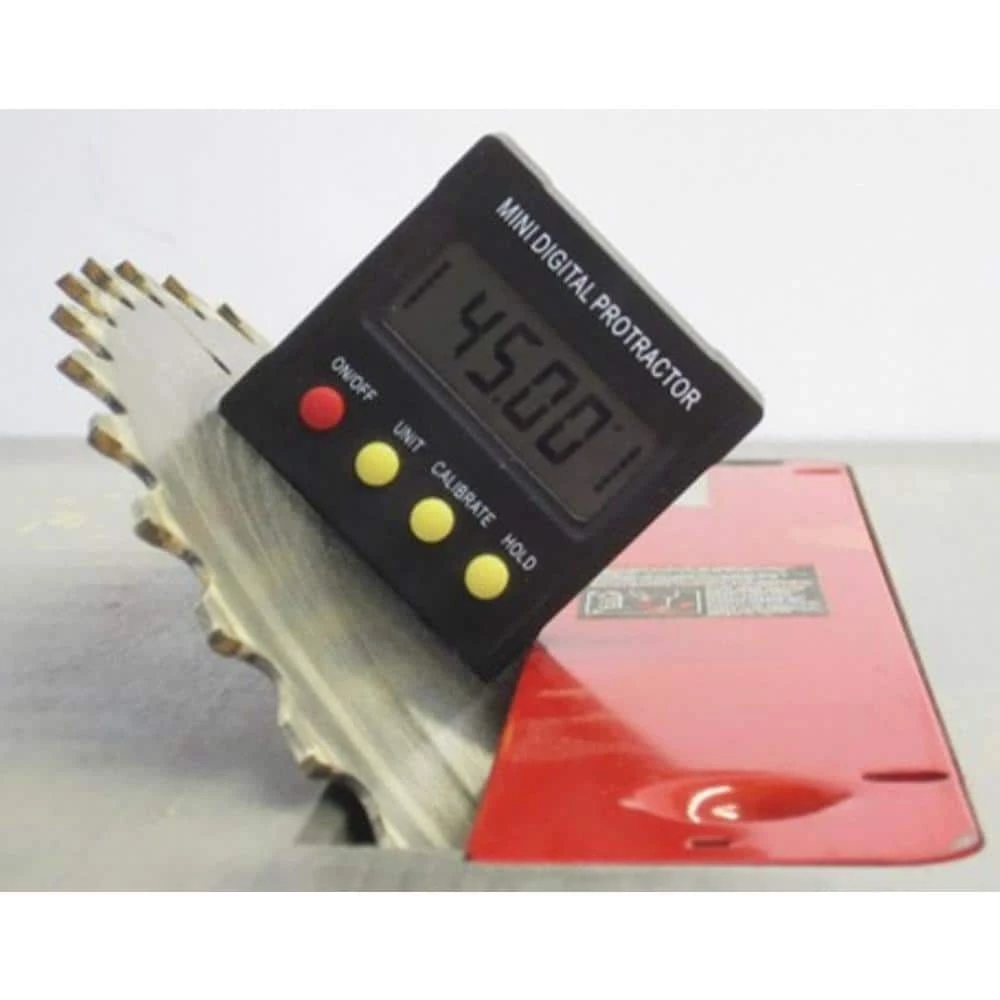

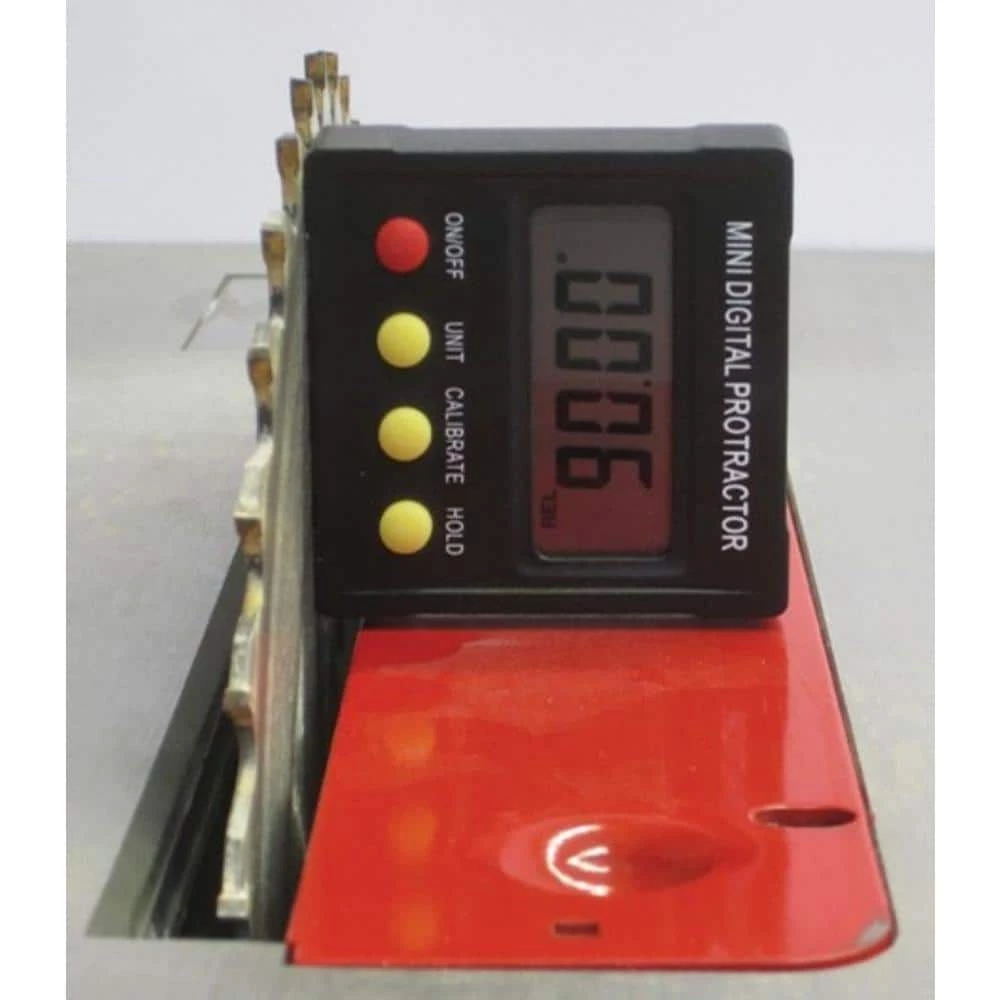

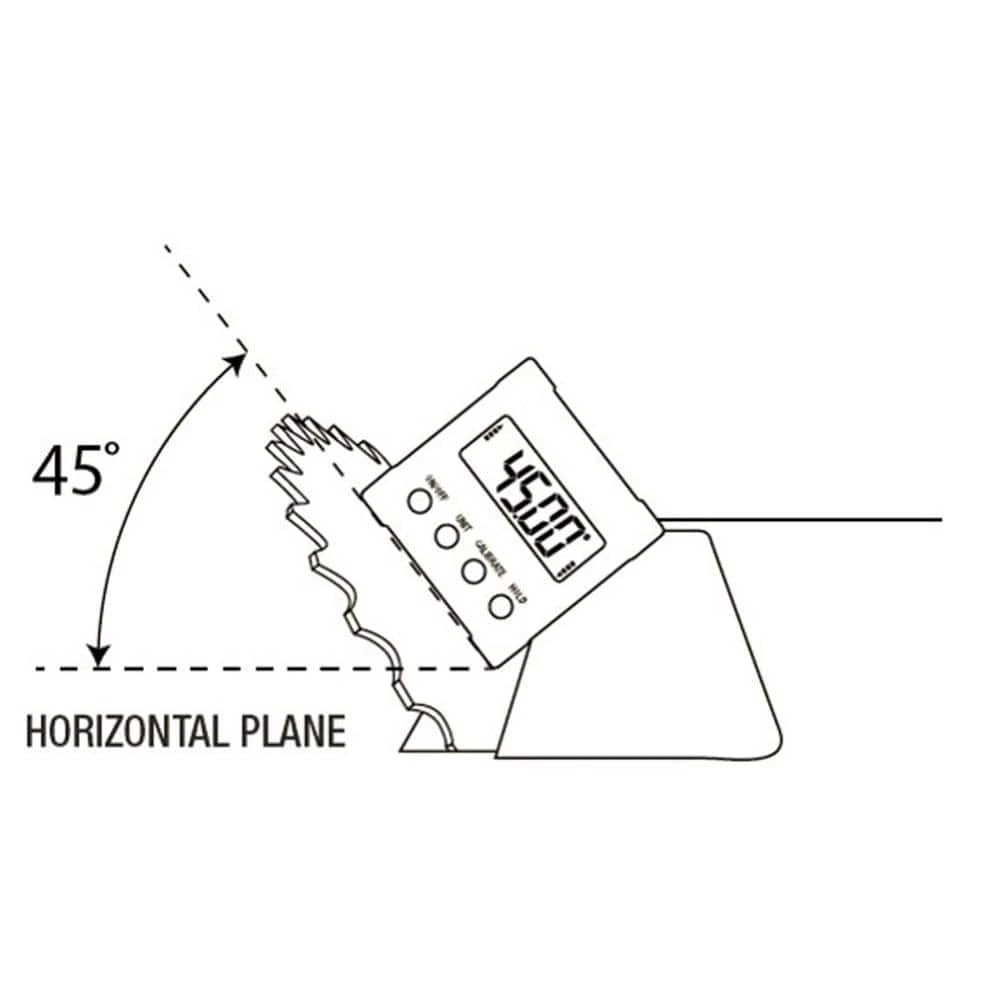

• Easily adjust or check saw blades angles to any desired angles
• Strong magnets hidden inside the bottom of the device securely attach the device to saw blades
• Automatically flips the displayed readout value to show right side up, whether the unit is upside down or not
• Arrow sign helps indicate the rotating direction
• 0.1° resolution with 180° measuring range
