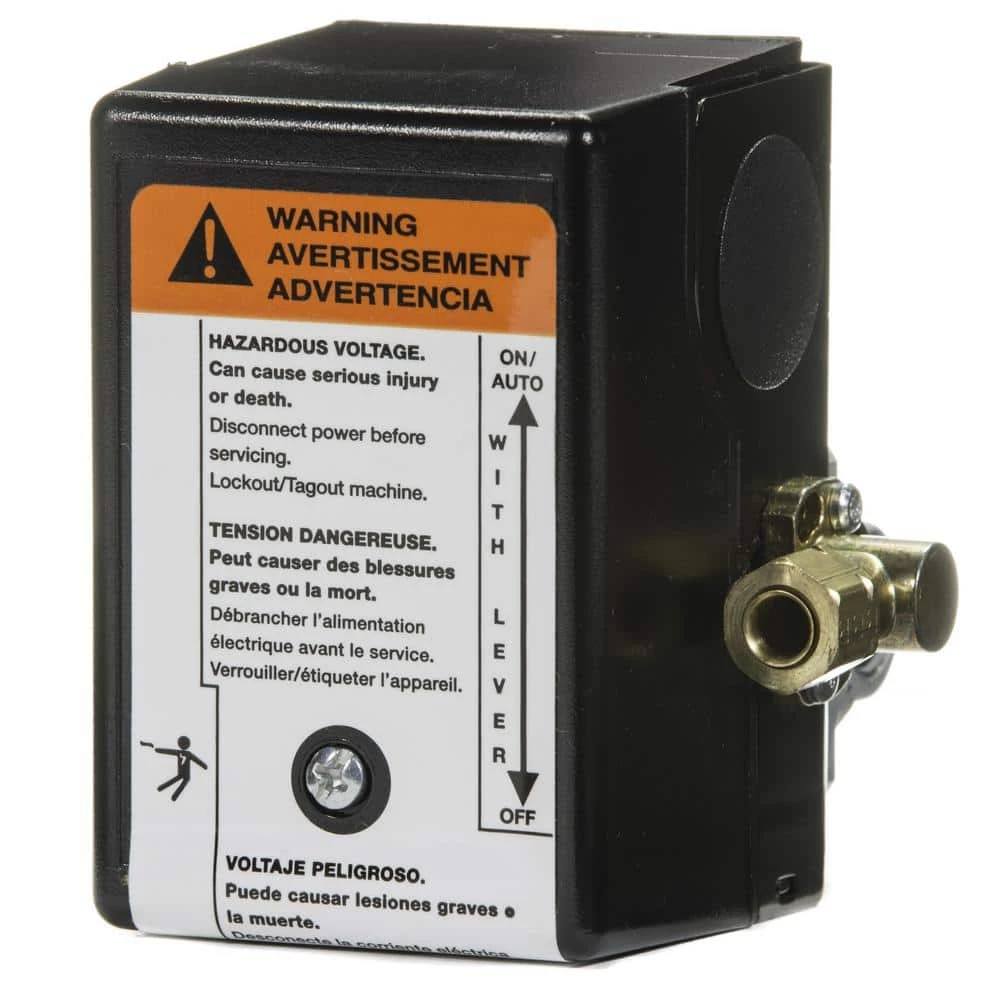

23474570 OEM Replacement Pressure Switch for 3ph. Recip. Air Compressors and 7.5 HP Single Phase 2475 by Ingersoll Rand

Ingersoll Rand 23474570 Pressure Switch for Two-Stage Compressors Return your air compressor to peak performance with the Ingersoll Rand 23474570 Pressure Switch. This genuine OEM replacement part is designed for Ingersoll Rand 5 HP reciprocating air compressor models, including models 2340L5/N5/D5-V Three Phase, 2475N5/D5-V, 2475N5/D5-P, 2475N7.5/D7.5-V, 2475N7.5/D7.5-P, 2545E10/K10-V, 2545E10/K10-VP, 7100E15-V and 7100E15-VP models. The pressure switch has a built-in unloader valve, features a NEMA type 1 indoor enclosure and is rated for applications at 135 PSIG cut-in and 175 PSIG cut-out. Keeps Air Pressure Consistent and Reliable The pressure switch for your Ingersoll Rand air compressor measures the pressure inside your air tank and helps the machine maintain proper pressure levels as you work. When the pressure switch wears down or becomes faulty due to amp fluctuation, the operating pressure band can be affected leading to short cycling and sub-optimal performance. This Ingersoll Rand replacement pressure switch helps address these issues.

• Designed for use with 3 phase Ingersoll Rand reciprocating air compressor models including: 2340, 2475, 2545 and 7100, also compatible with 7.5 single phase 2475 models
• 135 psig cut-in, 175 psig cut-out
• Includes unloader valve
• NEMA type 1 enclosure
• OEM replacement pressure switch available for three phase Ingersoll Rand reciprocating air compressors and the 7.5 hp single phase 2475, rated for applications between 135-175 psi
